Multi LCD Display Smart Sever Rack Mount PDU Power Distribution Unit
Specification:
| Item | Specification |
| Product Name | PDU |
| Product Model | RDK-IP08M16 |
| Input | Rated input voltage | AC220V 50/60 Hz |
| Max load current | 16A |
| Power supply type | Single phase input, National standard C20 socket |
| Input parameter collection | Current, voltage, active energy, power (active power, reactive power, apparent power, power factor) |
| Output | Output socket | Eight circuit; National standard 10A socket |
| Rated output voltage | AC220V 50/60 Hz |
| Rated output current | 10A |
| Output parameter collection | Current, power, power factor |
| Display | LCD | Backlit text LCD display |
| Port parameter | RJ45(NET) | 10/100M, Ethernet access interface |
| Cascade port | 2 RS485 ports for equipment cascade (photoelectric isolation) |
| Sensor port | 2 temperature and humidity sensor interfaces |
| Other parameter | Button | 2 LCD display up/down buttons 1 LCD display down button One is used as a restart and reset button, single press the device to restart;Long press is the reset function, the device parameters are restored to factory settings. |
| Working environment | Temperature | -15°C---50°C |
| Relative humidity | 10—90% |
| Dimension | Black 19 inch 1U chassis | 485mm X 250mm X 44mm |

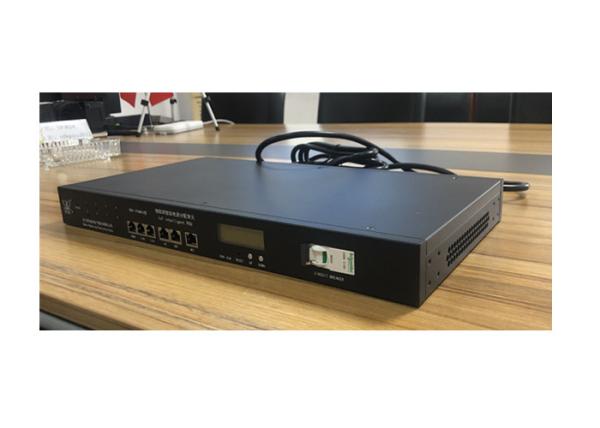

The front of the device
The back of the device
Features:
Control function: The independent eight circuits switch can be remotely controlled on and off status and reset;The independent eight circuits switch can be powered on at the same time or in a delayed sequence (optional).
Measurement: The main and each circuit of voltage, current, power, electric energy, power factor measurement.
Alarm protection: The main circuit and independent eight circuits have over-current protection, over-voltage and under-voltage alarm protection.
Debugging method: Built-in Bluetooth communication interface, debugging through Wechat mini Program.
Communication method: RS485, Modbus, Network port, LoRaWan, NB-IoT, CAT1 (4G), Bluetooth.
Cascade: RS485 can be cascaded up to 256 units.
Applications:
Data center power management
1. Enterprise Computer Center
2. IDC network data center
3. Financial Computer Center
4. School Computer Center
5. Telecom Computer Center
6. Government Computer Center
7. Military Unit Computer Center
Company Introduction:
Wuhan Radarking Electronics Corp. is a modern share enterprises which focusing on the smart Internet of things(IOT) /smart grid energy consumption sensor/intelligent electric safety integrated solution. It established in 2002(former name: Wuhan Radarking Co.,Ltd.)and went public on January 27, 2015 with the stock abbreviation RADARKING and stock number 831722. It owns the independent R&D center and factory which is the key recommended high-tech enterprises in Wuhan city.
It mainly R&D, manufacture and sell the integrated solution of smart Internet of things(IOT) energy consumption sensor/smart grid energy consumption sensor/energy consumption information acquisition and transmission(Collector, Concentrator, Communication Module), smart electric meter, smart water meter, "RDK" energy Internet of Things(IOT) intelligent energy safety integrated solution, digital campus energy consumption acquisition(meter reading) charging management integrated solution, 4-in-1 Meter energy consumption acquisition(meter reading) charging management integrated solution, 4-in-1 Meter/All-in-One Card cloud computing total charging management integrated solution, energy consumption monitoring and analysis integrated solution, mobile phone APP(Energy Consumption, Fast E Top Up).
